Disassembling and assembling front bumper - AR88.20-P-2050E

MODEL 202

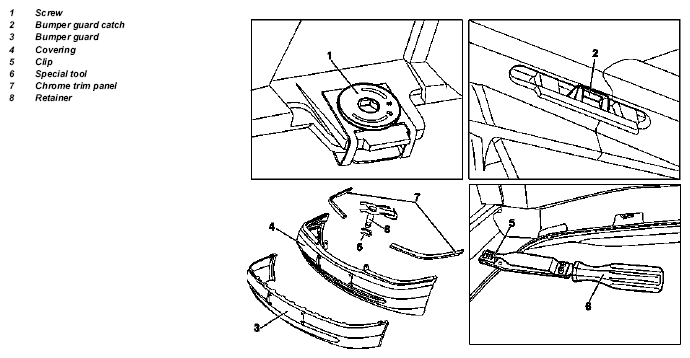

Fig 1: Identifying Front Bumper Disassemble/Assemble Components - Model 202

	Disassembly, assembly
1	Remove front bumper		AR88.20-P-2000E
2	Unscrew screw (1)
3	Press catch (2) for bumper guard (3) off of cover (4) with screwdriver and remove bumper guard (3)	On bumpers with chrome trim panel (7) remove upper impact damper
4	Remove clip (5) with special tool (6)		Fig 2
5	Remove chrome trim panel (7)	When replacing chrome trim panel (7), do not mix up retainers (8) (different versions)
6	Reassemble in opposite order

Special tool

Fig 2: Identifying Installation Tool For Bumper Trim Panel Clip (140 589 34 23 00)
