Removing and installing front bumper - AR88.20-P-2000E

MODEL 202

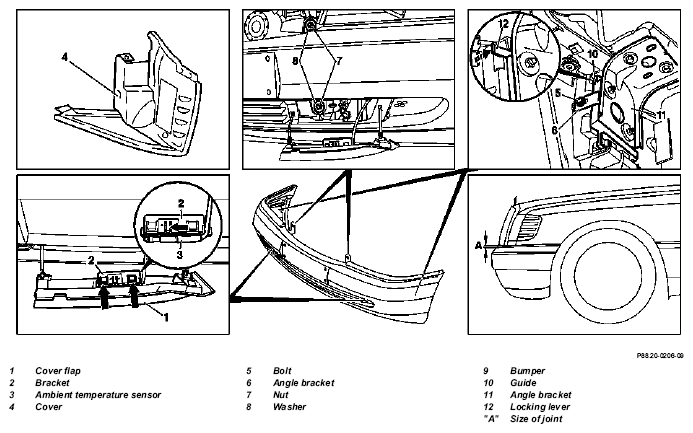

Fig 1: Identifying Front Bumper Remove/Install Components - Model 202

MODIFICATION NOTES

9.2.95

Procedure revised

Pay attention to step (8)

	Removing, installing
1	Open engine hood		AR88.40-P-1000E
2	Pull off cover flap (1)
3	Unclip fixture (2) of ambient temperature sensor (3) at flap (1)	If ambient temperature display code 240a fitted
4	Unclip guide (3) at fixture (2)	If ambient temperature display code 240a fitted
5	Remove cover (4) in wheel-housing
6	Unscrew bolt (5) at angle bracket (6)
N	Unscrew nut (7) and take off washer (8)		*BA88.20-P-1001-01A
8	Take off bumper (9)	If modified version (10), pull locking lever (12) in before taking off Installation:  Inspect size of gap "A"; correct, if necessary, by setting guide (10) or angle bracket (11)	*BE88.20-P-1001-01A
9.1	convert to AMG bumper	see Installation Instructions Accessories ↓ Retrofitting AMG body trim parts	AZ88.00-P-0001A
10	Install in the reverse order

GAP DIMENSIONS BUMPER

Number	Designation			Model 202
BE88.20-P-1001-01A	Dimension	Front bumper, size of gap "A"	mm	5
		See figure		AR88.20-P-2000E

BUMPER

Number	Designation		Model 202
BA88.20-P-1001-01A	Nut of front bumper to crossmember	Nm	20
