Removing and installing rear door actuator - AR80.20-P-2200E
MODELS 202, 210
| Removal, installation | |||
| 1 | Removing and installing door lock on rear door | Model 202 | AR72.12-P-2510E |
| Model 210 | AR72.12-P-2510F | ||

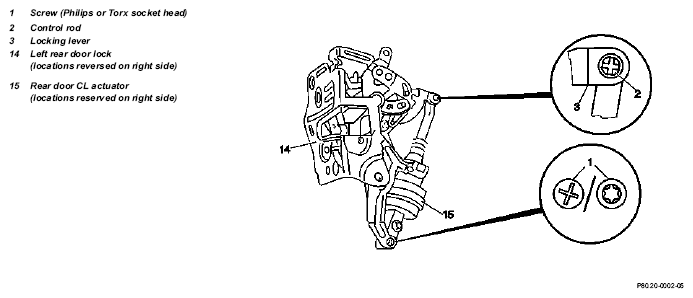

| 2 | Remove screw (1) | ||
| 3 | Unclip shift rod (2) on locking lever (3) | ||
| 4 | Detach actuator (15) on door lock (14) | ||
| 5 | Check pneumatic operation of actuator (15) | Model 202 | dh0302pa0zv32x |
| Model 210 | dh0303pa0zv32x | ||
| 6 | Reinstall in opposite order |
