Removing and installing torsion bar on rear axle - AR32.20-P-0315C

MODEL 170, 202, 208, 210

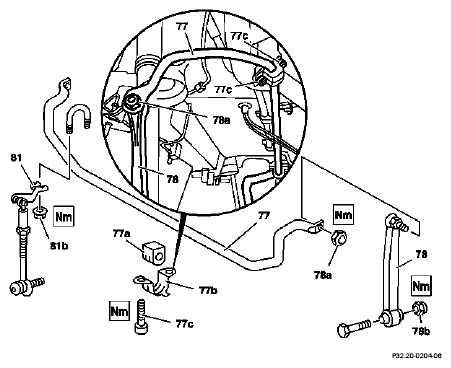

Fig 1: Identifying Torsion Bar On Rear Axle Components - Model 170, 202, 208, 210

	Removing, installing
	Replace self-locking bolts and nuts.
1	Remove rear axle.	Models 202, 170, 208			AR35.10-P-0010D
		Model 210			AR35.10-P-0010B
2	Remove connecting rod (78).	Models 170, 202, 208 Nut (78a)			*BA32.20-P-1001-04C
		Model 210	Nut (78a)		*BA32.20-P-1002-04D
		Models 170, 202, 208 Nut (78b)			*BA32.20-P-1002-04C
		Model 210	Nut (78b)		*BA32.20-P-1001-04D
3	Remove fixing clamp (77b).	Models 170, 202, 208 Bolt (77c)			*BA32.20-P-1003-04C
		Model 210	Bolt (77c)		*BA32.20-P-1003-04D
4	Remove torsion bar (77).	Installation:  Center torsion bar (77).
5	Pull rubber mount (77a) off torsion bar (77).
6.1	Remove steering idler arm (81).	Models 202, 208 except 208.4: Vehicles with level control code 480 Model 210: Vehicles with level control code 480, vehicles with level control and ADS code 217a: Installation:  The surface on the steering idler arm (81) must align with the surface on the torsion bar (77)
		Models 202, 208 Nut (81b)			*BA32.20-P-1004-04C
		Model 210 Nut (81b)			*BA32.20-P-1004-04D
7	Install in the reverse sequence.

Rear axle torsion bar

Number	Designation		Model 170	Model 202 without level control	Model 202 with level control
BA32.20-P-1001-04C	Nut, connecting rod to torsion bar	Nm	30	30	30
BA32.20-P-1002-04C	Self-locking nut, connecting rod to spring link	Nm	20	20	20
BA32.20-P-1003-04C	Self-locking bolt, torsion bar rubber mount to frame floor	Nm	20	20	20
BA32.20-P-1004-04C	Self-locking nut, steering idler arm to torsion bar	Nm	-	-	10

Rear axle torsion bar

Number	Designation		Model 208 without level control	Model 208 with level control
BA32.20-P-1001-04C	Nut, connecting rod to torsion bar	Nm	30	30
BA32.20-P-1002-04C	Self-locking nut, connecting rod to spring link	Nm	20	20
BA32.20-P-1003-04C	Self-locking bolt, torsion bar rubber mount to frame floor	Nm	20	20
BA32.20-P-1004-04C	Self-locking nut, steering idler arm to torsion bar	Nm	-	10

Rear axle torsion bar

Number	Designation		Model 210 with level control / ADS CODE 217	Model 210 without level control /ADS CODE 217
BA32.20-P-1001-04D	Self-locking nuts, torsion bar connecting rod to spring link	Nm	20	20
BA32.20-P-1002-04D	Nut, connecting rod to torsion bar	Nm	30	30
BA32.20-P-1003-04D	Self-locking Allen bolt, torsion bar rubber mount to frame floor	Nm	28	28
BA32.20-P-1004-04D	Self-locking nut, steering idler arm to torsion bar	Nm	10	10
