Removing and installing pull cable for engine hood - AR88.40-P-3100F

MODEL 210, 208.3 /4

Illustrated on model 210b

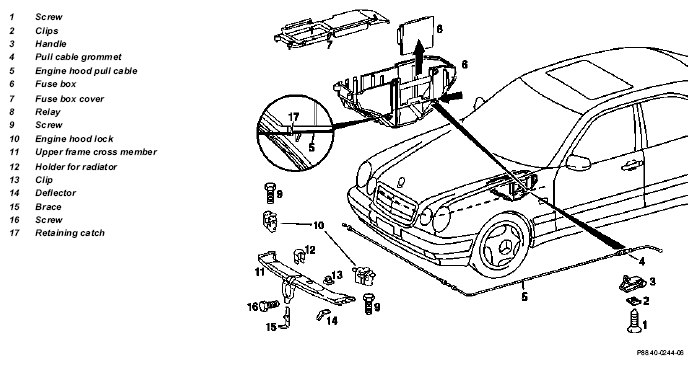

Fig 1: Identifying Pull Cable For Engine Hood Remove/Install Components

	Removal, installation
	Risk of injury  from fingers being pinched or jammed  when removing and installing and aligning hoods, doors, trunk lids/tailgates and sliding roof	When moving components ensure that no body parts or limbs are in the area of motion.	AS00.00-Z-0011-01A
1	Move engine hood to upright position		AR88.40-P-1000F
2	Remove left and right engine hood locks	Installation:  Check locking function of engine hood lock and safety hook after installation	AR88.40-P-3200K
		Model 208	AR88.40-P-3200K
		Model 210	AR88.40-P-3200F
3	Unscrew screw (1) on handle (3)
4	Pull handle (3) out of catch on cover and unhook engine hood pull cable (5) from handle (3)
5.1	Remove cover below instrument panel	Model 210 only	AR68.10-P-1500F
6	Press pull cable grommet (4) back from inside at fuse box (6, arrow)	When installing the pull cable grommet ensure that it is seated properly on the fuse box
7	Fasten cord or wire to nipple on engine hood pull cable (5) on inside	This facilitates installation
8	Remove cover (7) on fuse box (6)
9	Pull relay (8) up out of fuse box (6) (arrow) and put down	Do not disconnect electric plugs
10	Unclip engine hood pull cable (5) on fuse box retaining catch (17)	Press fuse box side wall slightly inwards for this purpose.
11	Expose engine hood pull cable in engine compartment and pull out	When installing route engine hood pull cable carefully
12	Install in opposite order
13	After installing check locking function of engine hood and safety catch
