Remove/install engine hood catch - AR88.40-P-3200K
MODEL 208.3/ 4

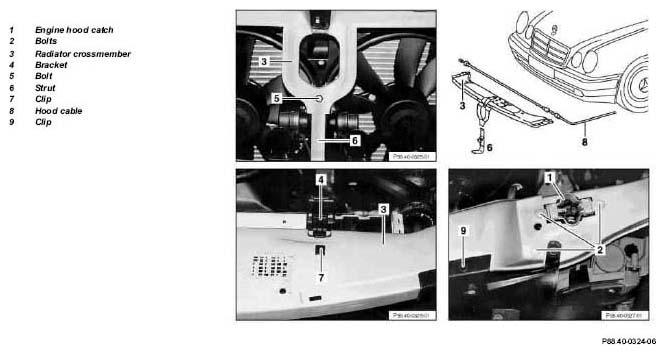

Shown on model 210
| Remove/Install | |||
| Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood | AR88.40-P-1000F | |
| 2 | Remove bracket (4) from radiator crossmember (3) | ||
| 3 | Unclip clip (9) form radiator paneling | ||
| 4 | Unscrew bolts (2) on engine hood catch (1) and radiator crossmember (3) | *BA88.40-P-1003-01A | |
| 5 | Unscrew bolts (5) from strut (6) | ||
| 6 | Lift radiator crossmember (3), unclip engine hood cable (8) from clip (7) and remove radiator crossmember (3) | ||
| 7 | Unhook engine hood cable (8) from engine hood catch (1) and remove engine hood catch upward | ||
| 8 | Install in the reverse order | ||
| 9 | Check whether engine hood catch catches properly. | ||
| 10 | Release engine hood and ensure that safety hook catches on radiator crossmember | ||
| 11 | Close engine hood | AR88.40-P-1000F | |
| 12 | Check gaps of engine hood | Gaps of hood | *BE60.00-P-1001-01A |
| Figure | |||
| Check gaps, correct if necessary, see ↓ | |||
| Adjust engine hood | AR88.40-P-3020K |
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 208.3 | Model 208.4 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01A | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4.0 (± 0.5) | 4.0 (± 0.5) |
| Engine hood to headlamp | Dimension "R" | mm | 6.0 (± 1.1) | 6.0 (±1.1) | ||
| Engine hood to radiator grille | Dimension "O" | mm | - | - | ||
| Radiator grill to headlamp | Dimension "N" | mm | - | - | ||
| Fig., see | AR60.00-P-0700-01K | AR60.00-P-0700-01KA | ||||
| Number | Designation | Model 208.3/4 | |
|---|---|---|---|
| BA88.40-P-1003-01A | Bolt on engine hood catch | Nm | 8 |
