Removing |
|
|
| 1 |
Remove taillamp |
|
AR88.50-P-5000K |
| 2 |
Remove rear shelf |
|
AR68.30-P-4580K |
| 3 |

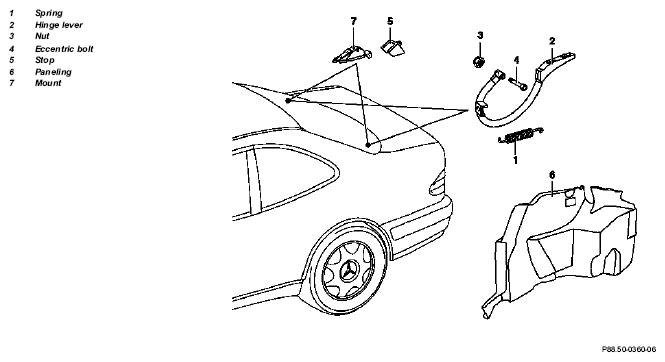

Remove paneling (6) |
|
|
| 4 |
Remove spring (1) on hinge lever (2) |
|
|
| 5 |
Unscrew nut (3) |
|
|
| 6 |
Pull out eccentric bolt (4) and remove hinge lever (2) |
|
|
 |
Installation |
|
|
| 7 |
Position hinge lever (2) and insert eccentric bolt (4) |
The installation position of the trunk lid can also be adjusted in the vertical and longitudinal directions with the eccentric bolt |
|
| 8 |
Screw in nut (3) |
|
|
| 9 |
Remove spring (1) on hinge lever (2) |
|
|
| 10 |
Install trunk lid |
|
AR88.50-P-5000K |
| 11 |
Adjust trunk lid |
|
AR88.50-P-5200K |
| 12 |
Tighten nut (3) |
Nut on eccentric bolt |
*BA88.50-P-1003-01A |
| 13 |
Install rear shelf |
|
AR68.30-P-4580K |
| 14 |
Install paneling (6) |
|
|
| 15 |
Close trunk lid and check for proper functioning |
|
|
