Removing and installing engine hood hinge - AR88.40-P-3060F

MODEL 210, 208.3 /4

Illustrated with front fender removed

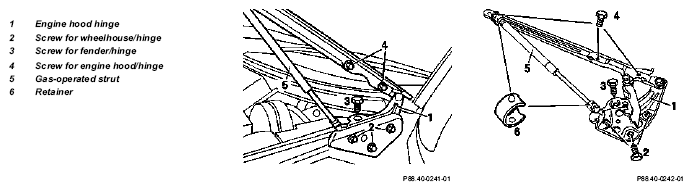

Fig 1: Identifying Engine Hood Hinge Remove/Install Components

	Removal, installation
	Risk of injury  from fingers being pinched or jammed  when removing and installing and aligning hoods, doors, trunk lids/tailgates and sliding roof	When moving components ensure that no body parts or limbs are in the area of motion.	AS00.00-Z-0011-01A
1	Move engine hood to upright position	Move engine hood to "upright" position to relieve pressure on gas-operated strut.
		Models 208.3, 210	AR88.40-P-1000F
2	Remove engine hood	Model 208	AR88.40-P-3000K
		Model 210	AR88.40-P-3000F
3	Remove inner fender in front fender
4	Mark installation position of engine hood hinge on wheelhouse panel	Facilitates reassembly.
5	Remove gas operated strut (5) by lifting retainers (6)	Remove gas operated strut only when load is relieved with engine hood hinge in vertical position When replacing gas operated strut ↓
		Dispose of gas operated strut (old part)	OS00.00-P-1001-01A
6	Unscrew screws (2 and 3) and remove engine hood hinge (1)	Model 208: to improve accessibility, remove bolts (2) of right-hand hinge and, if necessary, vacuum reservoir in right wheelhousing (do not disconnect lines)
		Model 208	*BA88.40-P-1005-01A
		Model 210	*BA88.40-P-1002-01A
7	Install in opposite order

Engine hood

Number	Designation		Model 208.3/4	Mode 210
BA88.40-P-1002-01A	Nuts on engine hood hinge	Nm	-	10
BA88.40-P-1005-01A	Bolts on engine hood hinge	Nm	12	-
