Removing and installing engine hood - AR88.40-P-3000K

MODEL 208.3 /4

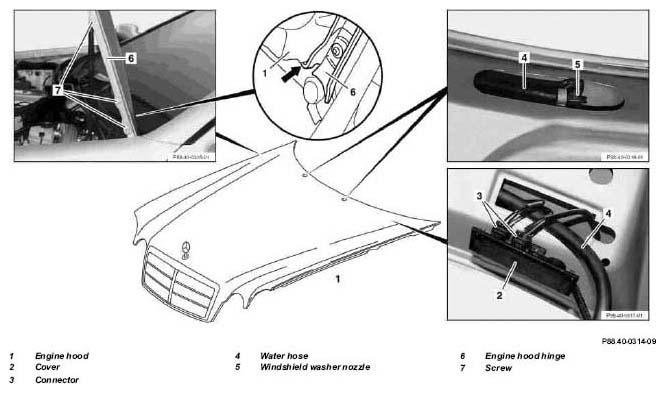

Fig 1: Identifying Engine Hood Remove/Install Components

	Removal, installation
	Risk of injury  from fingers being pinched or jammed  when removing and installing and aligning hoods, doors, trunk lids/tailgates and sliding roof	When moving components ensure that no body parts or limbs are in the area of motion.	AS00.00-Z-0011-01A
1	Move engine hood (1) to upright position		AR88.40-P-1000F
2	Attach fender guards
3	Unclip cover (2) and disconnect connectors (3)
4	Pull water hose (4) off of windshield washer nozzle (5) and pull out of engine hood (1)
5	Mark installation position of engine hood (1) on engine hood hinges (6)	This facilitates installation
6	Unscrew screws (9) on engine hood (1)	Have second person secure engine hood Screw on engine hood	*BA88.40-P-1001-01A
7	Remove engine hood (8) with aid of second person and set down on suitable surface	Avoid damaging paint
		Installation:  Insert engine hood (1) into hinge (6) (see arrow).	AR88.40-P-3020K
8	Reinstall in opposite order	When replacing engine hood supplement standard joint seal and hollow cavity preservation. See ↓
		Sealing weld after repairs Model 208.3	AR97.10-P-4000K
		Model 208.4	AR97.10-P-4000KA
		Processing of corrosion protection materials before painting	AR97.20-P-0500A
		Hollow cavity preservation following repair	AR97.20-P-1500K
9	Adjust engine hood		AR88.40-P-3020K

ENGINE HOOD

Number	Designation		Model 208.3/4
BA88.40-P-1001-01A	Screws on engine hood	Nm	10
