Remove/install soft top - AR88.60-P-1000KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

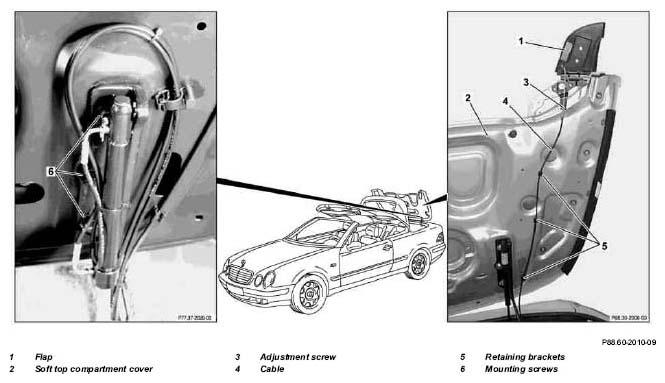

Fig 1: Identifying Soft Top Remove/Install Components

G04729671

	Remove/install
1	Remove inner paneling from soft top (2)
2	Loosen soft top bow lock	Lay lock down to side with hydraulic lines connected. Refer to: ↓
		Remove/install soft top bow lock in soft top compartment cover	AR77.30-P-3562KA
3	Remove cable (4) from soft top compartment cover	Unhook cable (4) from flap (1) and pull out of retaining clips (5) Refer to: ↓
		Remove/install cable for soft top compartment cover rear paneling	AR68.30-P-1650KA
4	Unscrew mounting screws (6) from soft top compartment cover	To avoid damage remove soft top compartment cover with second mechanic Mark position of mounting screws as adjustment aid
			*BA88.60-P-1001-01A
5	Install in the reverse order	Installation: Adjust soft top cover Refer to: ↓
		Gap dimensions at hoods, doors and covers	AR60.00-P-0700-01KA BE60.00-P-1007-01A BE60.00-P-1008-01A

TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS

Number	Designation				Model 208.4
BE60.00-P-1007-01A	Gap dimension	Soft top to windshield frame	Dimension "S"	mm	12 (±2,0)
		Soft top to soft top compartment cover	Dimension "W"	mm	5 (±3,0)
		Soft top to soft top compartment cover	Fig., see		AR60.00-P-0700-01KA
BE60.00-P-1008-01A	Gap dimension	Soft top compartment cover/rear fender	Dimension "X"	mm	4.0 (±0.5)
		Soft top compartment cover to trunk lid	Dimension "Y"	mm	4.5 (±0.5)
		Soft top compartment cover to trunk lid	Fig., see		AR60.00-P-0700-01KA

TORQUE SPECIFICATION

OUTSIDE FLAPS

Number	Designation		Model 208.4
BA88.60-P-1001-01A	Bolt, hinge to soft top compartment cover	Nm	10
