Remove/install soft top bow lock - AR77.30-P-3562KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

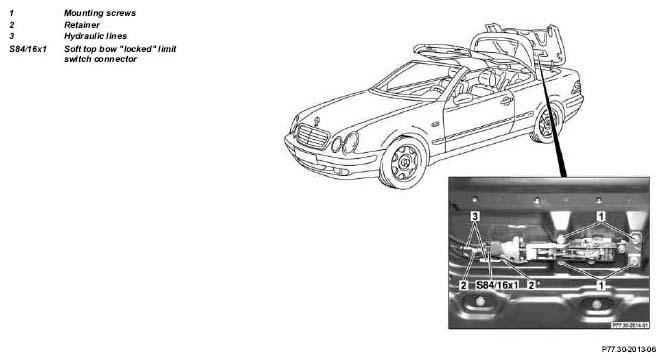

Fig 1: Identifying Soft Top Bow Lock Remove/Install Components

	Remove/install
1	Open soft top	Leave soft top compartment lid open
		Protect soft top in soft top compartment against oil running out.
2	Remove soft top compartment lid inner paneling
3	Disconnect soft top bow "locked" limit switch connector (S84/16x1)
4	Unscrew mounting screws (1)		*BA77.30-P-1002-01A
5	Press retainer (2) off of hydraulic lines (3) and pull out hydraulic lines (3).	Immediately plug hydraulic lines with stop plug and connectors on hydraulic cylinder with blind plug .
		Stop plug No. -07	Fig 2
		Blind plug No. -01	Fig 2
6	Remove soft top bow lock.
7	Install in the reverse order
8	Bleed hydraulic system		AR77.37-P-1000-03KA
9	Check oil level of hydraulic system	if necessary add oil through oil filler screw:
		See operating sheet specifications	BB00.40-P-0343-00A
		Oil filler screw	*BA77.37-P-1003-01C
10	Check for proper function and leakage

SOFT TOP

Number	Designation		Model 208.4
BA77.30-P-1002-01A	Bolt, soft top bow lock to soft top compartment lid	Nm	8

SOFT TOP - HYDRAULICS

Number	Designation		Model 208.4
BA77.37-P-1003-01C	Oil filler screw to hydraulic unit reservoir	Nm	2

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)
