Removing and installing tank flap actuator - AR80.20-P-2300K

MODEL 208

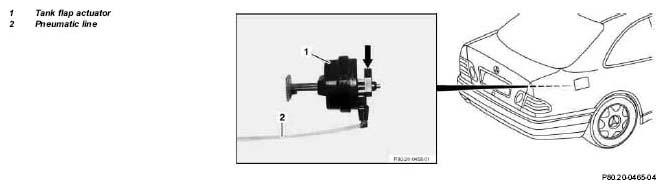

Fig 1: Identifying Tank Flap Actuator Remove/Install Components

	Removal, installation
1	Remove pneumatic system equipment control module	Do not remove PSE control module from foam rubber cube, do not disconnect pneumatic and electrical lines	AR80.20-P-2700K
2	Press retaining lug (arrow) and remove tank flap actuator (1) from holder
3	Remove tank flap actuator (1)
4	Pry off pneumatic line (2) with open end wrench (7 mm)
5	Reinstall in opposite order	Installation of the tank flap actuator (1) is only possible in one position
