Removal and installation of PSE control module (A37/2-A37/5) - AR80.20-P-2700K

MODEL 208

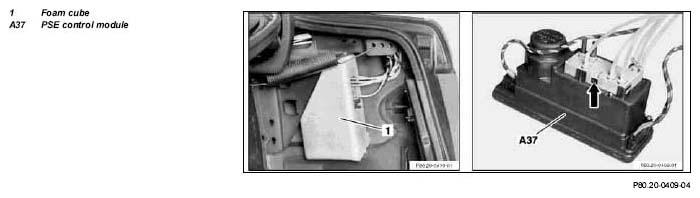

Fig 1: Identifying PSE Control Module Remove/Install Components - Model 208

	Removal, installation
1	Remove paneling right side of trunk
2	Pull foam cube (1) out of right trunk recess and open
3	Remove PSE control module (A37) from foam cube (1)
4	Disconnect electrical connectors from PSE control module
5	Disconnect module plug from PSE control module	For this purpose pull release retainer (arrow)
6	Check PSE control module for proper electrical function	See Diagnosis Manual, Body
7	Check PSE control module for proper pneumatic function	See Diagnosis Manual, Body
8	Reinstall in opposite order	If the PSE control module is replaced it is necessary to perform version coding with the HHT.
