Removing, disassembling and installing rear shelf - AR68.30-P-4580K

MODEL 208.3

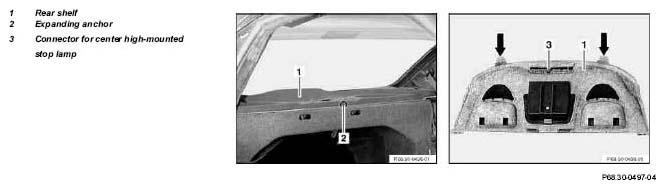

Fig 1: Identifying Rear Shelf Remove/Install Components (1 Of 3)

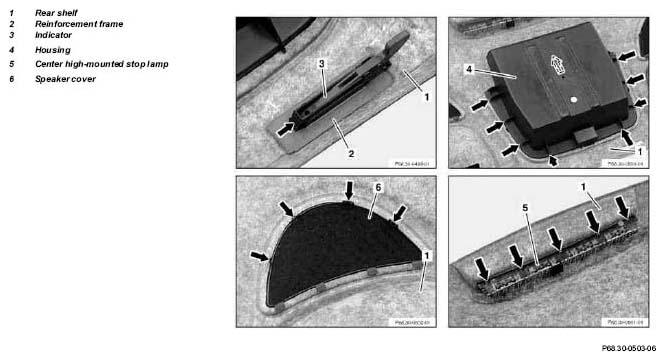

Fig 2: Identifying Rear Shelf Remove/Install Components (2 Of 3)

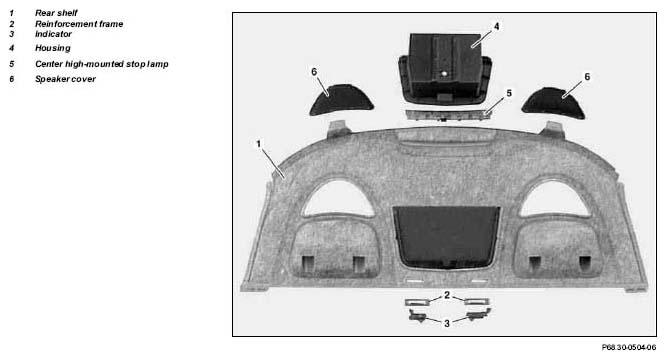

Fig 3: Identifying Rear Shelf Remove/Install Components (3 Of 3)

	Removal
1	Remove side paneling in rear on left and right		AR68.30-P-4780K
2	Remove both rear head restraints		AR91.16-P-1770E
3	Remove expanding anchor (2)	On vehicles with code 540a also unscrew nuts (3 each) on sun blind and disconnect connector from drive
4	Lift rear shelf (1) at front and pull forward by simultaneously disconnecting connector (3) on center high-mounted stop lamp
5	Remove rear shelf (1)
	Installation
6	Position insulation below rear shelf (1) and expose wires
7	Position rear shelf (1) and simultaneously connect connector (3) to center high-mounted stop lamp.	On vehicles with code 540a connect connector to drive for sun blind
8	Insert lugs on rear shelf (1) (arrows) into cutouts in trunk bridge and insert indicator (3) into opening above backrest catch
9	Install expanding anchor (2)	On vehicles with code 540a also screw nuts (3 each) onto sun blind
10	Install both rear headrests		AR91.16-P-1770E
11	Install side paneling on left and right		AR68.30-P-4780K
	Disassembly
12	Lay rear shelf (1) down on suitable surface
13	Unclip indicator (3) (arrow) and remove
14	Remove reinforcement frame (2)
15	Push housing (4) toward rear and unclip from rear shelf (1) (arrow)
16	Unclip center high-mounted stop lamp (5) toward rear (arrow) and remove
17	Unclip speaker cover (6) and remove upward
