Remove/install B-pillar paneling - AR68.30-P-4700K

MODEL 208.3

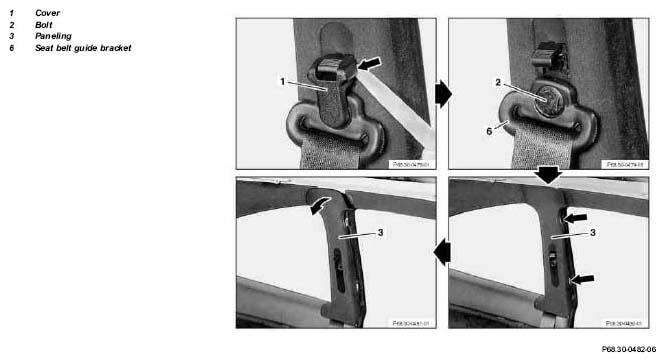

Fig 1: Identifying B-Pillar Paneling Remove/Install Components (1 Of 2)

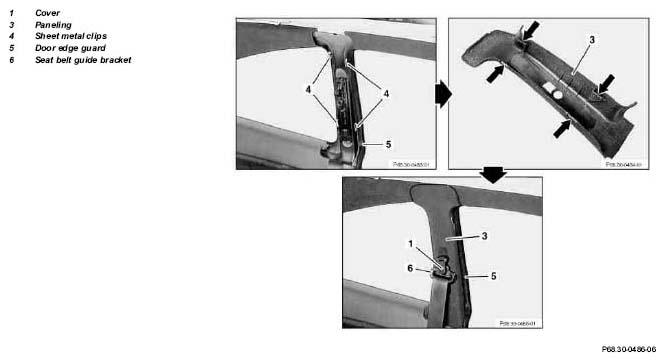

Fig 2: Identifying B-Pillar Paneling Remove/Install Components (2 Of 2)

	Remove/Install
1	Unclip and remove cover (1)		Figure
2	Unscrew bolt (2) at seat belt guide bracket (6)		*BA91.40-P-1002-01A
3	Unclip front paneling (3) (arrows), then pull toward center at top and remove	Installation:  Position paneling (3), align and press on first at both rear clips. Align door edge guard (5)
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Models 202, 208.3	Model 208.4	Model 210
BA91.40-P-1002-01A	Bolt/nut to front seat belt guide bracket	NM	35	35	35

Fig 3: Identifying Long Wedge (115 589 03 59 00)
