Removing and installing loudspeakers in the rear shelf - AR82.62-P-7836F

MODEL 208.3

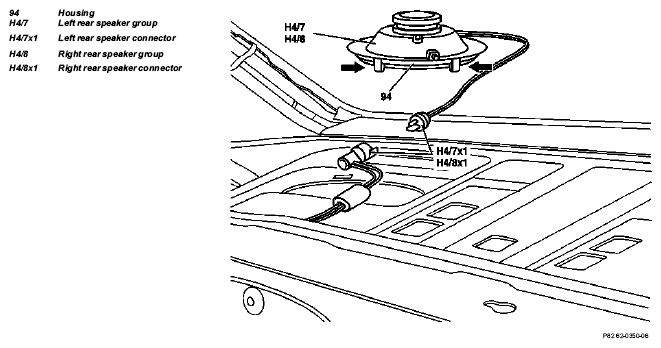

Fig 1: Identifying Loudspeakers In Rear Shelf Remove/Install Components

	Removal, installation
1	Remove rear shelf		AR68.30-P-4580K
2	Disconnect connectors (H4/7x1, H4/8x1)	Installation:  Position foam sleeves on top of connectors
3	Unclip housing (94) from trunk	For this purpose press back retaining lugs (arrows)
4	Remove speakers (H4/7, H4/8)
5	Reinstall in opposite order
