Removing and installing loudspeakers in front doors - AR82.62-P-7845EB

MODEL 208

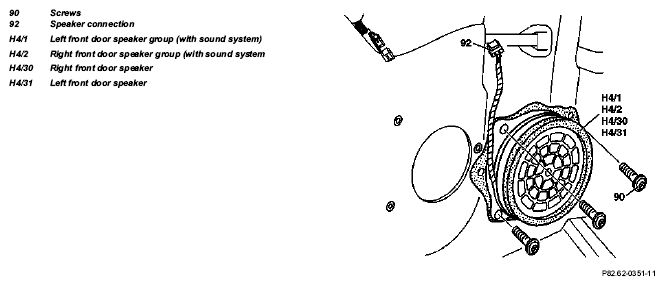

Fig 1: Identifying Loudspeakers In Front Doors Remove/Install Components (1 Of 2)

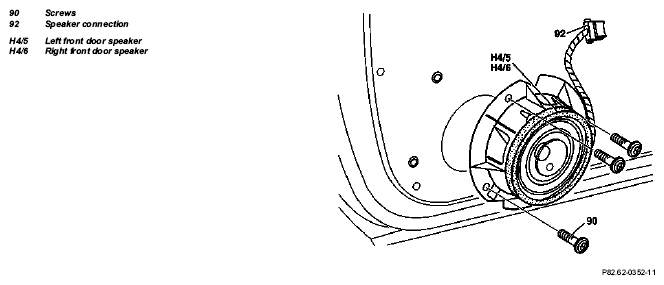

Fig 2: Identifying Loudspeakers In Front Doors Remove/Install Components (2 Of 2)

	Removal, installation
1	Remove door liners on front doors		AR72.10-P-1000K
2	Disconnect loudspeaker connectors (92)
3	Unscrew screws (90)
4	Remove speakers (H4/1, H4/2, H4/30, H4/31 and H4/5, H4/6)
5	Reinstall in opposite order
6	Check for proper function
