Removing and installing door liner on front door - AR72.10-P-1000K

MODEL 208

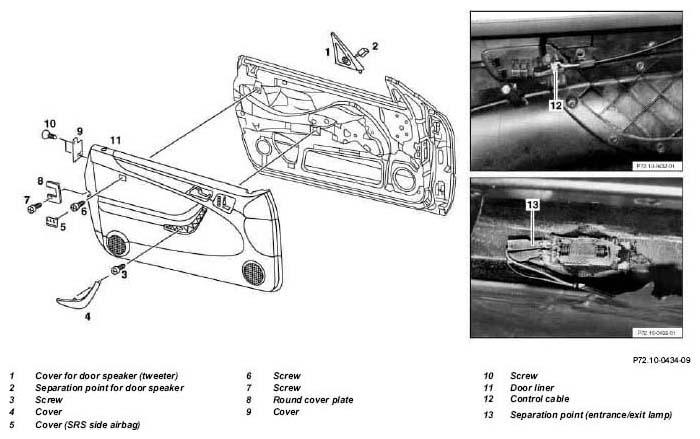

Fig 1: Identifying Door Liner On Front Door Remove/Install Components - Model 208

	Removal, installation
1	Open crank window
2	Unclip cover for door speaker (1) with installation wedge and disconnect door speaker (2) at separation point		Figure
3	Remove cover (4)	Press off cover (4) from bottom with long wedge
			Fig 3
4	Unscrew screw (3)
5	Unclip cover (5) with long wedge	Only on vehicles with code 292 (front left and right side airbags)
			Fig 3
6	Unscrew screw (6)
7	Remove round cover plate (8)
8	Remove cover (9)
9	Press off door liner (1) at bottom of inner door panel, at front and rear with installation wedge	Insert installation wedge directly next to each clip	Figure
10	Lift door liner (11) at top along sealing rail upward out of clips with installation wedge and simultaneously pull away from inner door panel	Installation:  Insert door lock linkage into eyelet in door liner (11)	Figure
11	Unhook control cable (12) from door inner actuating mechanism	On vehicles with code 221a and 222a, electrically adjustable left and right front seats, disconnect connector for seat adjustment on door control module.
12	Disconnect entrance/exit lamp at separation point (13)
13	Lay door liner (11) down on clean surface
14	Check door foil on inner door plate and clips on door liner (11)	Replace door foil and clips if damaged, glue door foil onto inner door panel	*BR00.45-Z-1004-02A
15	Reinstall in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)

Fig 3: Identifying Long Wedge (115 589 03 59 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1004-02A	Adhesives	A 001 989 30 71
