Removing and installing loudspeaker in rear wall (interior) - AR82.62-P-7838E
MODEL 208.4

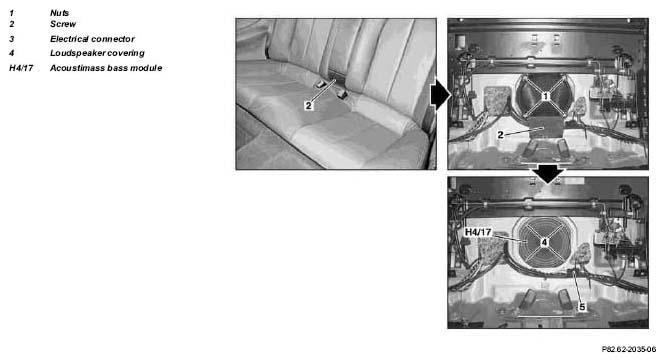

| Removal, installation | |||
| 1 | Remove rear seat and rear backrest | AR91.12-P-1700KA | |
| 2 | Unscrew screws (1) and remove loudspeaker cover (5) | ||
| 3 | Disconnect electrical connector (4) from bass module | ||
| 4 | Unscrew screws (2) | ||
| 5 | Remove Acoustimass bass module (H/17) | ||
| 6 | Install in opposite order | ||
| 7 | Check for proper function |
