Removing and installing rear seat and rear seat backrest - AR91.12-P-1700KA

MODEL 208.435 /444 /445 /447 /448 /465 /470

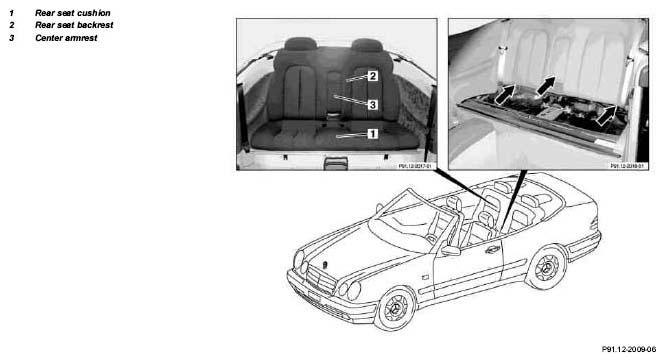

Fig 1: Identifying Rear Seat And Rear Seat Backrest Remove/Install Components

	Removing, installing
1	Move both front seat forward
2	Lift front seat cushion (1) and remove	Installation:  Move seat belt buckles through rear seat cushion, insert rear seat cushion into mount on vehicle floor, then catch at front
3	Unscrew screws (arrows) from rear seat backrest (2)	To loosen the screw behind the center armrest (3) reach between cover and seat upholstery and press cover to outside
4	Remove rear seat backrest (2) upward	Only with code 220 Parktronic system  Disconnect electrical connector
5	Install in the reverse order
