Removing and installing emergency call system transmitter/receiver - AR82.95-P-0007E

MODEL 208.4 with CODE (348a) Emergency call system with CODE (498) Japanese version

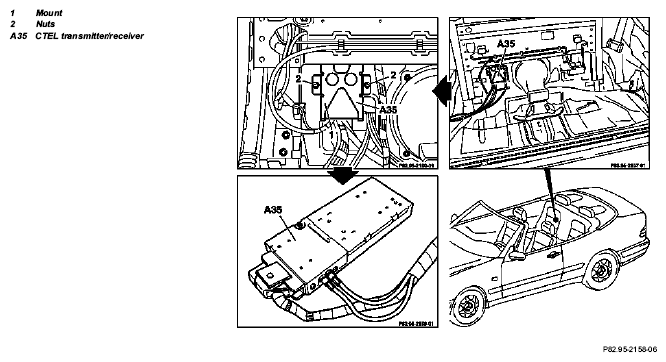

Fig 1: Identifying Emergency Call System Transmitter/Receiver Remove/Install Components - Model 208.4 With Code (348A)

	Removal, installation
1	Remove rear seat and rear seat backrest		AR91.12-P-1700KA
2	Remove nuts (2)
3	Carefully pull out mount (1) with transmitter/receiver (A35)
4	Carefully disconnect connection leads and antenna leads
5	Carefully pull mount (1) off of CTEL transmitter/receiver
6	Install in opposite order
