Removing and installing cellular telephone interface - AR82.70-P-7379K

MODEL 208.4 with CODE (316) MB D-network telephone (D2B)

MODEL 208.4 with CODE (317) D-network cellular telephone (D2B)

Illustrated with permanently installed telephone code 316

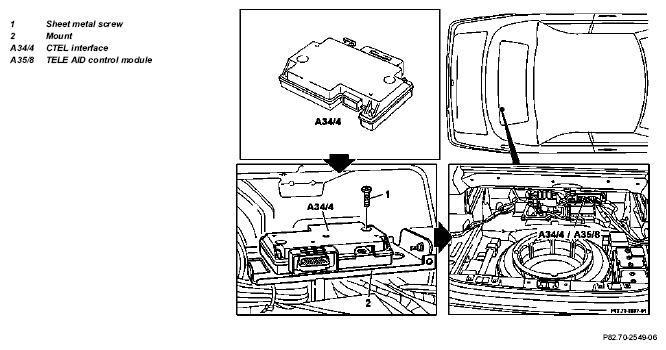

Fig 1: Identifying Cellular Telephone Interface Remove/Install Components - Telephone Code 316

Illustrated with cellular telephone code 317

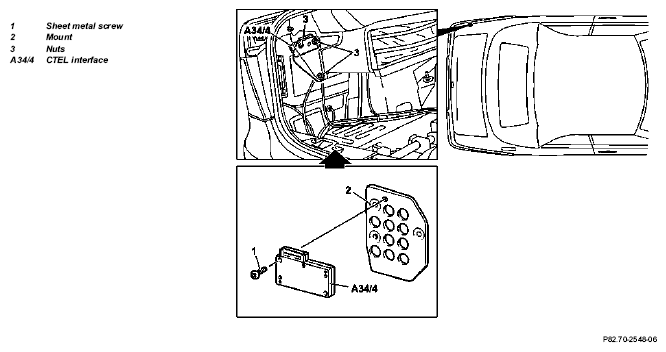

Fig 2: Identifying Cellular Telephone Interface Remove/Install Components - Telephone Code 317

	Removal, installation
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
2	Disconnect ground lead from battery		AR54.10-P-0003A
3.1	Remove side paneling in trunk on left	Only with cellular telephone code 317
4.1	Remove assembly rear wall	Only with permanently installed telephone code 316	AR68.74-P-1000KA
5.1	Unscrew nuts (3)	Only with cellular telephone code 317
6.1	Carefully pry mount (2) with control modules out of wheelhouse cavity	Only with cellular telephone code 317. Do not damage connection leads
7	Unlock connector on control module and disconnect	Do not kink or stretch fiber optic cable
8.1	Disconnect antenna lead on CTEL transmitter and receiver (A35)	Only with permanently installed telephone code 316
9	Loosen sheet metal screw (1)
10	Remove CTEL interface (A34/4)
11	Install in opposite order
