Removing and installing lining on C-pillar - AR68.30-P-4490F
MODEL 210.0## ## up to 111290
| Removing, installing | |||

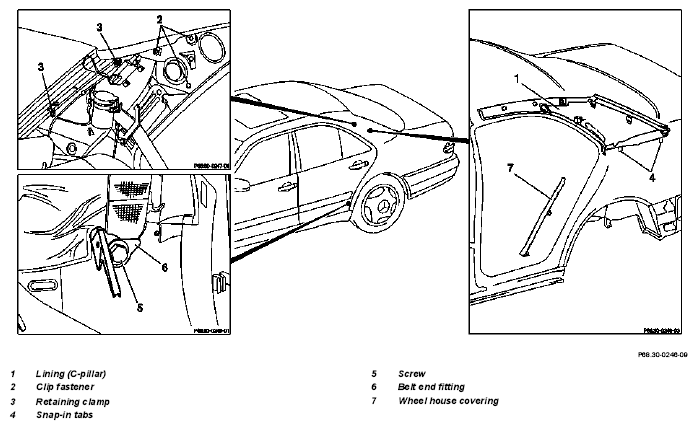

| 1 | Remove edge guards in area of paneling (1 and 7) | ||
| 2 | Remove handle | ||
| 3 | Remove paneling (7) | ||
| 4 | Use long wedge to press paneling (1) out of retaining clip (2) | Figure | |
| 5 | Force off paneling (1) from the retaining clamps (3) and pull snap-in tabs (4) out of the parcel shelf to the front | To completely remove the paneling (1): ↓ | |
| Remove rear seat cushion | AR91.12-P-1700F | ||
| 6 | Remove screw (5) on belt end fitting (6) of rear seat belt and withdraw belt strap from the paneling (1) | *BA91.40-P-1001-01A | |
| 7 | Install in the reverse order |
| Number | Designation | Models 202, 208 | Model 210 | |
|---|---|---|---|---|
| BA91.40-P-1001-01A | Screw on seat-belt end fitting. | Nm | 35 | 35 |
Special tool
