Removing and installing molding on instrument panel - AR68.10-P-1180F
MODEL 210
| Removal | |||
| 1 | Remove cover for loudspeaker | AR68.10-P-1050F | |

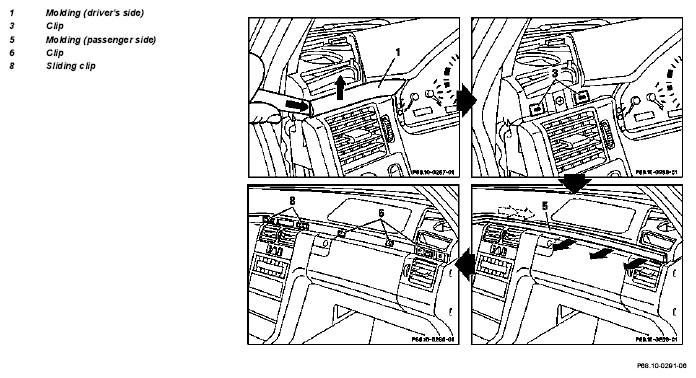

| 2 | Pull threaded studs (2) on molding (1, driver's side) out of clips (3) in instrument panel (9) with plastic wedge | Fig 3 | |
| 3 | Put down molding (1) | ||
| 4 | Pull the three outer threaded studs (4) on the molding (5) out of the clips (6) in the instrument panel (9) with plastic wedge | Fig 3 | |
| 5 | Then pull molding (5) outwards and remove the two center threaded studs (7, with nuts ) from the sliding clips (8) | ||
| 6 | Put down molding (5) | ||
| Installation | |||

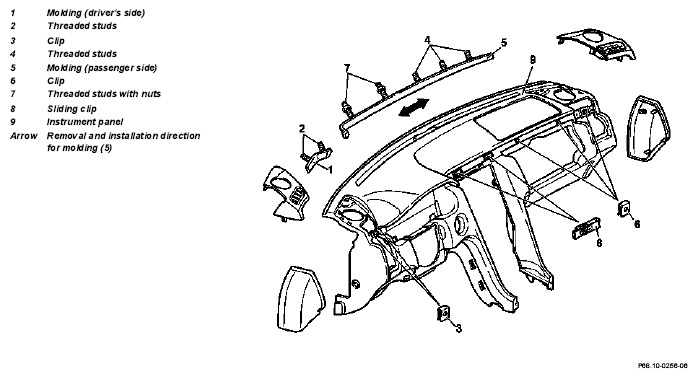

| 7 | Press threaded studs (2) on molding (1) into clips (3) in instrument panel | ||
| 8 | Insert threaded studs (7, with nuts) on molding (5) into the two sliding clips (8) and slide molding (5) toward center against stop | ||
| 9 | Press threaded studs (4) on molding (5) into clips (6) | ||
| 10 | Install cover for loudspeaker | AR68.10-P-1050F |
