Removing and installing cover for loudspeaker - AR68.10-P-1050F

MODEL 210

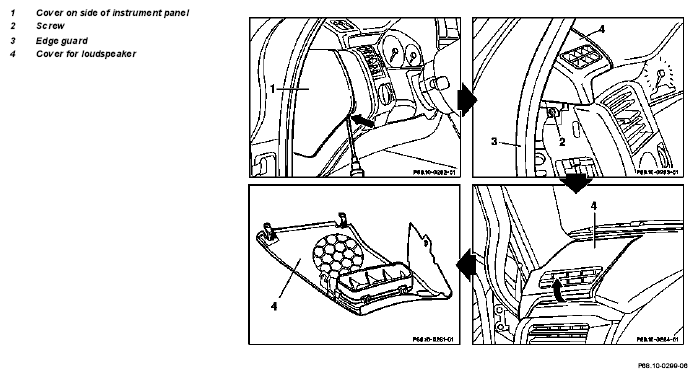

Fig 1: Locating Loudspeaker Cover Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unclip cover (1) on side of instrument panel with screwdriver (arrow) (3 clips) and remove toward rear.
2	Unscrew screw (2)
3	Pull off edge guard (3) in area of cover (4)
4	Lift cover (4) and remove toward rear	Installation:  To install insert hooks (2 each) at front and ensure that cover (4) catches audibly.
5	Reinstall in opposite order
