Removing and installing cover below instrument panel (on right) - AR68.10-P-1520F

MODEL 210

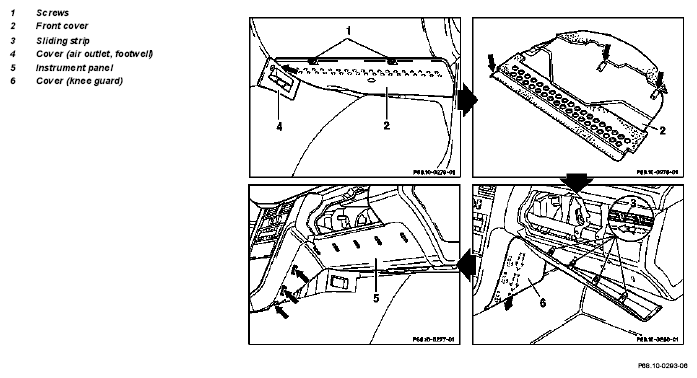

Fig 1: Identifying Cover Below Instrument Panel (On Right) Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unscrew screws (1)
2	Pull front cover (2) out toward rear and lay down	Installation:  When installing insert both tabs (arrows) into retainers on heater housing and insert cover (2) behind cover (4, footwell air outlet) from side (arrow)
3	Remove glove box		AR68.10-P-1400F
4	Remove insulating mat below cross tube in area of glove box cutout
5	Remove cover (4) on footwell air outlet
6	Slide sliding strip (3) on inside of instrument panel (5) toward center of vehicle and remove
7	Remove cover (6, knee guard) from instrument panel (5) downward while simultaneously removing hooks (3 each) on center console (arrows)
8	Lay down cover (6)
9	Reinstall in opposite order
