Activating anti-theft alarm (ATA), function - GF80.50-P-2002J
MODEL 202, 208, 210 as of 1.6.98 with CODE (551a) Anti-theft alarm (ATA)

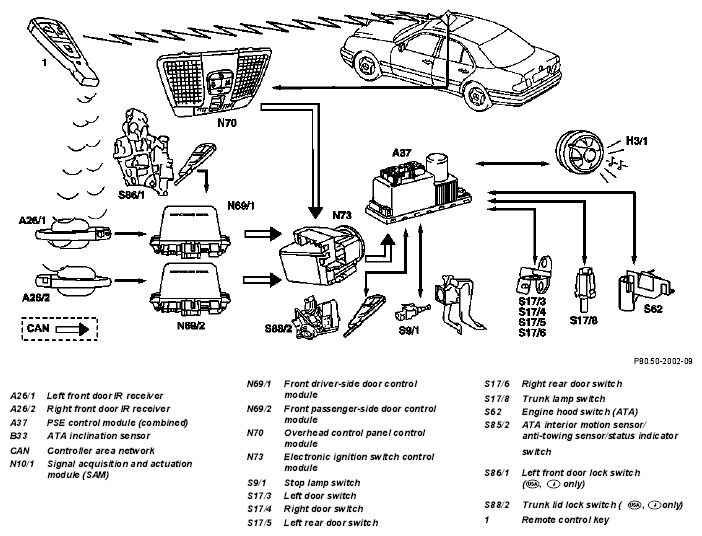

Illustrated on model 210 sedan
The anti-theft alarm (ATA) is activated by:
- Central locking of the vehicle with the remote control key
- Central locking of the vehicle with the lock switches
(
,
only)
- The relocking function
- Self-activation
(
only): Two minutes following the last locking procedure the ATA activates itself if a door, the tailgate or the trunk lid is opened and closed again after removing the remote control key.
- The ATA is not activated when the driver's door is opened.
- Activation of the ATA interrupts a previously triggered alarm.
- When the power supply is reactivated the ATA is automatically reactivated if it was active before disconnected from the power supply.
- IMS and TS can be switched off separately.
Function sequence
The PSE control module (combined) (A37) receives the signal to "lock vehicle" via the CAN bus. It then activates its inputs for the exterior surface contacts and the stop lamp switch.
Moreover the PSE module (A37) activates
- the alarm signal siren with additional battery (H3/1)
- the input for the anti-towing sensor (TS)
- only with code 882: the interior motion sensor (IMS)
If the ATA is activated the LED indicator in the ATA anti-towing sensor/status indicator switch flashes (S85/3)
The alarm signal siren with additional battery (H3/1) honks three times when the ATA is activated successfully. No confirmation is given if a door is not correctly closed when the ATA is activated.
Activation of the exterior surface contracts and the stop lamp switch
The alarm inputs to which the contacts are connected are activated individually. An input is activated as soon as it has been in the non-actuated state for at least 10 seconds.
Activation of the anti-towing sensor (TS)
The TS input is activated as soon as it has been in the non-actuated state for at least 10 seconds.
only code 882:
Activation of the interior motion sensor (IMS)
As soon as all doors are closed the IMS transmitter and receiver units
As soon as all doors are closed the IMS transmitter and receiver units are requested to self-activate via the data bus. Each unit confirms that it is operational. Alarm messages sent by a non-operational unit are ignored.
In vehicles with IMS the ATA interior motion sensor/anti-towing sensor/status indicator switch (S85/2) is installed instead of the S85/3 switch.
| Locking with remote control key, function | GF80.20-P-3005A | ||
| Locking/unlocking with lock switch, function | only |
GF80.20-P-3007A | |
| Deactivating anti-theft alarm (ATA), function | GF80.50-P-2003J | ||
| Switching off anti-towing sensor (TS), function | GF80.50-P-3024A | ||
| Switching off interior motion sensor (IMS), function | GF80.50-P-3025A | ||
| PSE control module (combined) (A37) | GF80.20-P-4106A | ||
| Triggering alarm, function | GF80.50-P-2004F | ||
| Transmitter and receiver unit Interior motion sensor | with infrared interior motion sensor | GF80.50-P-4104A | |
| with ultrasonic interior motion sensor | GF80.50-P-4104D |
