Removing and installing window lift in front door - AR72.10-P-1800F

MODEL 210

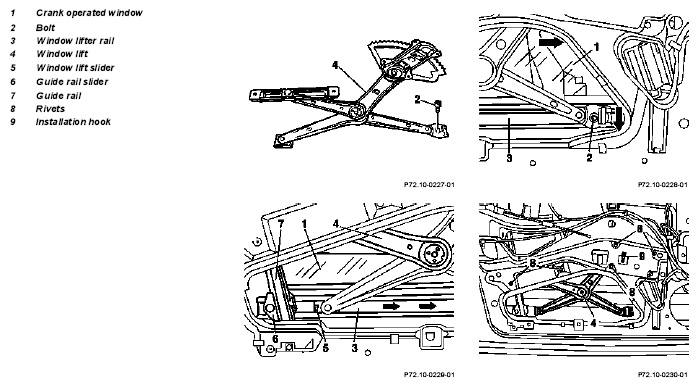

Fig 1: Identifying Window Lift In Front Door Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove door liner on front door		AR72.10-P-1000F
2	Remove foil on inner door panel	Before installing foil check window lift for easy motion
3	Unscrew bolt (29)	Open crank operated window to point that bolt (2) is accessible through installation opening Installation:  When installing bolt (2) ↓
		adjust crank operated window in front door	AR72.10-P-1950E
4	Pull crank operated window (1) downward at front out of front window guide rail, move upward on outside past window guide rail and simultaneously out of sliders (5 and 6).
5	Insert crank operated window into window guide rails and push upwards	Secure against falling down with installation wedge	Figure
6	Disconnect electric plugs on power window motor
7	Drill out or cut out pop rivets (8)	To drill out: use 4.8 mm dia. bit
8	Unhook window lift (4) from inner door panel with installation hook (9) and remove through installation opening
9	Reinstall in opposite order
