Removing and installing rear door damper - AR72.12-P-2200FB

MODEL 210 with CODE (979) Special protection version with CODE (Z06) B6 armoring

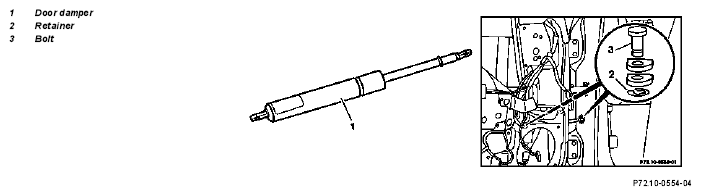

Fig 1: Identifying Rear Door Damper Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove door liner on rear door		AR72.12-P-1010FB
2	Pull off door foil in upper area	Installation:  Check door foil, replace if necessary
3	Remove retainer (2), pull out bolt (3)	Installation:  Replace retainer
4	Remove door damper (1)
