Removing and installing door liner on rear door - AR72.12-P-1010FB
MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring
| Removal, installation | |||

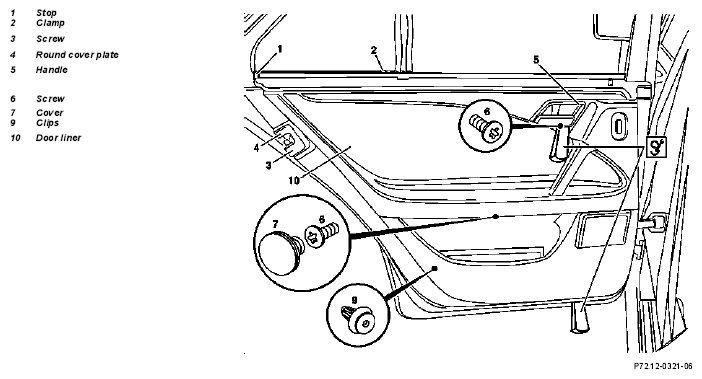

| 1 | Remove stop (1) and clip (2) and unhook curtain from rail on door liner | ||
| 2 | Unscrew screw (3) on lock cover (4) and remove lock cover downward | ||
| 3 | Press off handle recess (5) with installation wedge | Figure | |
| 4 | Unscrew screw (6) in area of door interior actuating mechanism | ||
| 5 | Press off cover (7) below armrest and unscrew screw | ||
| 6 | Unclip entry lamp, disconnect electric lead | ||
| 7 | Press door liner (10) off of inner door panel at bottom, front and rear with installation wedge | Figure | |
| 8 | Unhook control cable on door interior actuating mechanism | ||
| 9 | Put down door liner | ||
| 10 | Check foil and clips on inner door panel | ||
| 11 | Check clips (9) on door liner | ||
| 12 | Reinstall in opposite order |
