Removing and installing fixed window in rear door - AR72.12-P-1970FB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

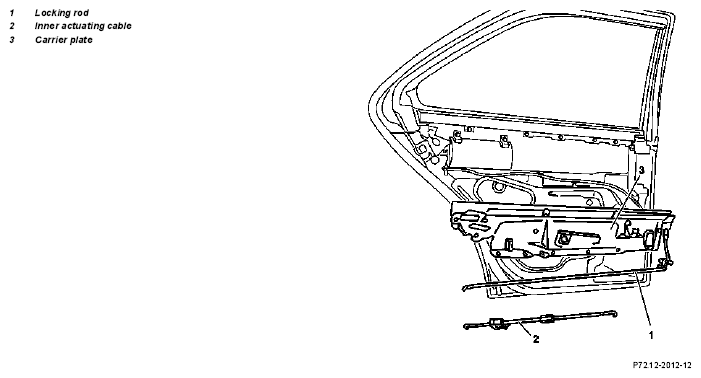

Fig 1: Identifying Fixed Window In Rear Door Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Notes on preventing damage to glazing and windows of special protection vehicles		AH67.00-P-0003-01FB
1	Remove outer sealing rail	Detach retaining clips from window channel	AR72.10-P-1700E
2	Remove door lining on rear door		AR72.12-P-1010FB
3	Remove door film
4	Detach locking rod (1)
5	Remove inner actuating cable (2)
6	Detach support plate (3)	Secured by 12 bolts
	Risk of injury due to hands and feet being crushed or trapped when working on glazing and windows	Secure glazing and windows to prevent them from falling down, to do so only use the designated hoists and wear safety shoes.	AS67.00-Z-0003-01A
7	Remove fixed window on rear door	The seals may be damaged when removing the window. They must be made from production parts.	AR72.12-P-1970-01FB
	Installing
	Risk of injury due to hands and feet being crushed or trapped when working on glazing and windows	Secure glazing and windows to prevent them from falling down, to do so only use the designated hoists and wear safety shoes.	AS67.00-Z-0003-01A
8	Install fixed window on rear door		AR72.12-P-1970-02FB
			*BA72.12-P-1006-01A
		Sealing compound	*BR00.45-Z-1023-01A
		Adhesives	*BR00.45-Z-1007-02A
		MB special adhesive	*BR00.45-Z-1002-02A
		Beta Seal adhesive compound	*BR00.45-Z-1005-02A
9	Attach carrier plate (3)
10	Attach inner actuating cable (2)
11	Attach locking rod (1)
12	Attach door film	Replace if damaged
13	Install door lining on rear door		AR72.12-P-1010FB
14	Install outer sealing rail		AR72.10-P-1700E

Rear door
