Retrofitting door handles - AZ72.10-P-0001A

MODEL 210

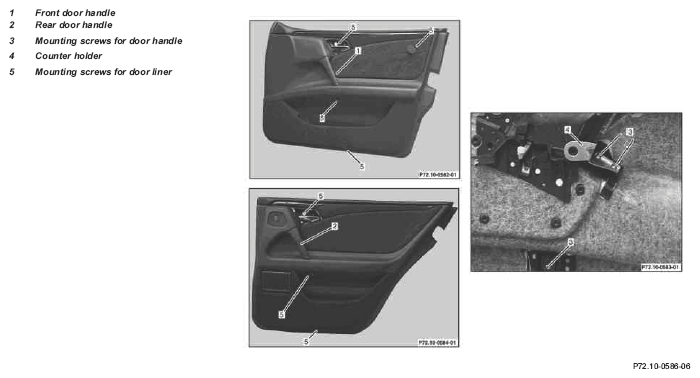

Fig 1: Identifying Door Handles Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Lower front and rear side windows
2	Remove door liner on front door		AR72.10-P-1000F
3	Remove door liner on rear door		AR72.12-P-1010F
4	Remove mounting screws (3) on door handle
5	Replace door handle	Retrofit door handle from parts ordering note according to interior equipment
6	Reinstall in opposite order

Parts ordering notes

Part no.	Designation	Quantity
B6 673 01 00	Front door handles, burr walnut veneer	2
B6 673 01 01	Rear door handles, burr walnut veneer	2
B6 673 01 02	Front door handles, bird's eye maple	2
B6 673 01 03	Rear door handles, bird's eye maple	2
B6 673 01 04	Front door handles, sycamore	2
B6 673 01 05	Rear door handles, sycamore	2
