Removing and installing side paneling in rear - AR68.30-P-4780B

MODEL 210.2

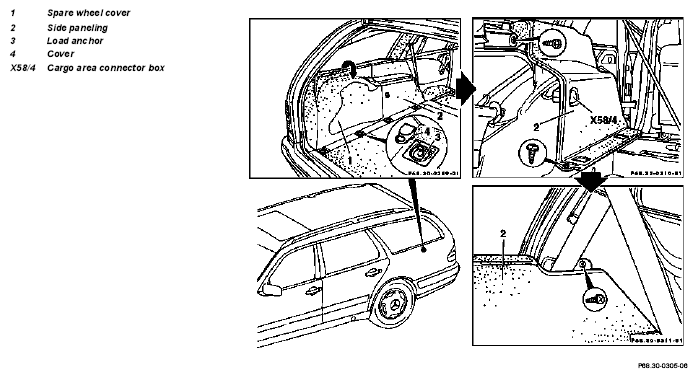

Fig 1: Identifying Side Paneling In Rear Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Fold up spare wheel cover (1) and remove
2	Remove cover (4) above bolts for load anchor
3	Unscrew bolt for load anchors (3)
4	Fold rear seat backrest forward
5	Remove panel on C-Pillar		AR68.30-P-4490FA
6	Disconnect plug from cargo area connector box (X58/4)	The cargo area connector box (X58/4) is located only in the left side panel (2)
7	Unscrew both screws (arrows) for side paneling (2)
8	Unclip side paneling (2) on door frame and remove toward front	NOTE: Pull off rubber door grommet to unclip side paneling (2)
9	Reinstall in opposite order
