Removing and installing lining on C-pillar - AR68.30-P-4490FA

MODEL 210.2

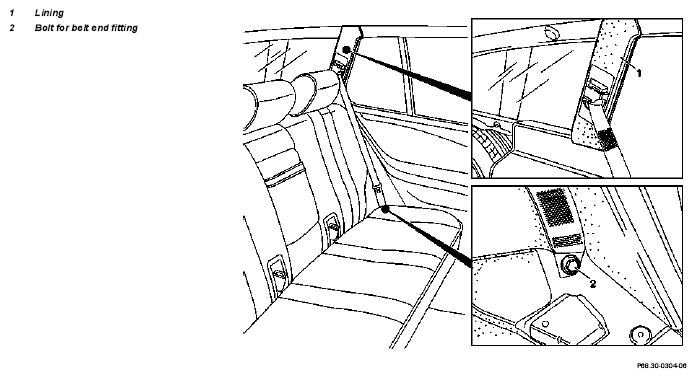

Fig 1: Identifying Lining On C-Pillar Components (Model 210.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Unclip lining (1) toward middle of vehicle
2	Unscrew bolt for seat belt end fitting (2)		*BA91.40-P-1001-01A
			Fig 2
3	Remove lining (1) from seat belt	Installation: Ensure that seat belt end fitting is arrested
4	Reinstall in opposite order

Seat belts/emergency tensioning retractors

Number	Designation		Model 202, 208	Model 210
BA91.40-P-1001-01A	Bolt on seat belt end fitting	Nm	35	35

Fig 2: Torque Wrench (001 589 66 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
