Remove, install poly V-belt - AR13.22-P-1202HB

ENGINE 611.960 /961 /962, 612.961 /962 /963 /965 /966 /967 /990, 613.960 /961

Shown on engine 611.960

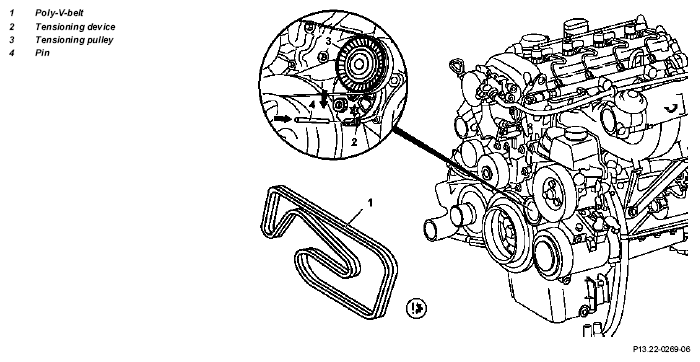

Fig 1: Identifying Poly V-Belt Remove/Install Components - Engine 611.960 /961 /962, 612.961 /962 /963 /965 /966 /967 /990, 613.960 /961

	Removing
1	Open engine hood and raise to vertical position	Model 163.113	AR88.40-P-1000GI
		Model 202	AR88.40-P-1000E
		Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 220	AR88.40-P-1000M
		Model 461.302 /332 /342 /345, 463.322 /323	AR88.40-P-1000GG
2	Remove trim panels of cylinder head cover	Engine 611.960/961/962	AR01.20-P-5014-02A
		Engine 612.961/962/963/965/967/990	AR01.20-P-5014-02B
		Engine 612.966 in model 461.331	AR01.20-P-5014-02GLC
		Engine 613.960/ 961960/961	AR01.20-P-5014-02C
3.1	Remove electric fan	Engine 612 in model 210	AR20.40-P-5000B
3.2	Remove viscous fan clutch	Engine 613 in model 210	AR20.40-P-5660HC
		Engine 612.965 in model 463	AR20.40-P-5660GP
		Engine 612.966 in model 461
3.3	Remove fan shroud	Engine 613 in model 220	AR20.40-P-6800M
4.1	Remove V-belt for alternator	Engine 612.966	AR13.21-P-0100GL
5	Loosen poly V-belt
		Engine 611, 612, 613.961	AR13.22-P-3902-01HB
		Engine 613.960
	Pin for locking poly V-belt tensioning device	Engine 611, 612, 613	WF58.50-P-1325-02A
6	Take off poly-V-belt	When carrying out further operations on the engine or timing case cover, relieve pressure on tensioning device. Inspect belt pulley sections and tensioning device for damage and dirt, replace if necessary.
	Checking
7	Inspect poly-V-belt	Inspect poly-V-belt for damage and traces of wear. Replace damaged poly-V belts, in order to avoid damaging the engine.
	Check poly-V-belt in visible area for wear	Model 202 with engine 611.960	AP13.22-P-1352Z
		Model 203 with engine 611.962, 612.962/990 Model 209 with engine 612.967 Model 210 with engine 611.961, 612.961, 613.961 Model 220 with engine 613.960
		Model 163 with engine 612.963	AP13.22-P-1351GH
		Model 463 with engine 612.965 Model 461 with engine 612.966	AP13.22-P-1351GD
	Install
8	Fit on poly-V-belt	Do not use belt wax or similar products, in order to ensure that the belt does not suffer from slippage. Fit on poly V-belt, beginning at the tensioning pulley: ↓
		Routing diagram of poly V-belt	AR13.22-P-3902-02HB
9	Tension poly V-belt		AR13.22-P-3902-04HB
10.1	Install fan shroud	Engine 613 in model 220	AR20.40-P-6800M
10.2	Install viscous fan clutch	Engine 613 in model 210	AR20.40-P-5660HC
		Engine 612.965 in model 463 Engine 612.966 in model 461	AR20.40-P-5660GP
10.3	Install electric fan	Engine 612 in model 210	AR20.40-P-5000B
11	Perform engine test run and check for correct seating of the poly-V-belt
12	Install trim panels of cylinder head cover	Engine 611.960/961/962	AR01.20-P-5014-02A
		Engine 612.961/962/963/965/967/990	AR01.20-P-5014-02B
		Engine 612.966 in model 461.331	AR01.20-P-5014-02GLC
		Engine 613.960/ 961960/961	AR01.20-P-5014-02C
13	Close engine hood	Model 163.113	AR88.40-P-1000GI
		Model 202	AR88.40-P-1000E
		Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 220	AR88.40-P-1000M
		Model 461.302 /332 /342 /345, 463.322 /323	AR88.40-P-1000GG
