Removing, installing electric fan - AR20.40-P-5000B
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2000 Mercedes-Benz C43, 2000 Mercedes-Benz C280, 2000 Mercedes-Benz C230, 1999 Mercedes-Benz C43, and 1999 Mercedes-Benz C280. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 611.960 in MODEL 202.133 /134 /193 /194
ENGINE 611.961 in MODEL 210.006 /007 /206 /606
ENGINE 612.961 in MODEL 210.016 /216 /616

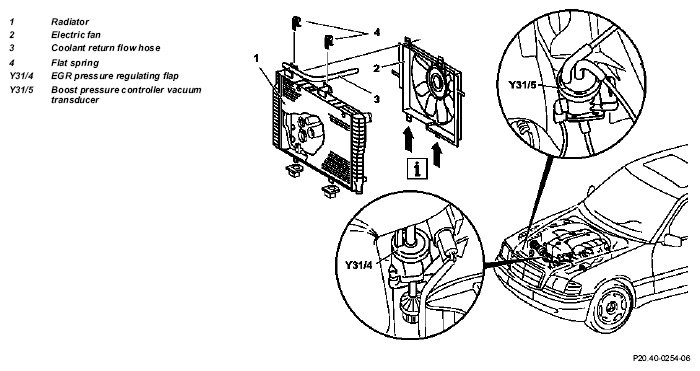

Shown on model 202:
| Removing, installing | |||
|---|---|---|---|
| 1 | Disconnect ground cable of the battery | AR54.10-P-0003A | |
| 2 | Detach coolant return flow hose (3) from fixture at radiator (1) | ||
| 3 | Take off electrical plug connection at electric fan (2) | ||
| 4.1 | Disconnect boost pressure regulator vacuum transducer (Y31/5) and EGR pressure regulator flap (Y31/4) at electric fan | Model 202 | |
| 5 | Pull off flat springs (4) on top of electric fan | ||
| 6 | Lift electric fan (2) up and out | ||
| 7 | Install in the reverse order |
