Measuring steering knuckle (removed) - AR40.30-P-0451C
MODEL 170, 171, 202, 203, 208, 209.3 /4, 210.00 /01 /02 /03 /05 /06 /07 /21 /22 /23 /26 /27 /6 (except, 203.081 /084 /281 /284 /087 /092 /287 /292)

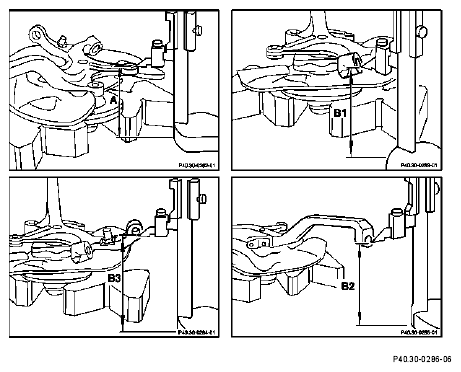

Shows steering knuckle, right
| Measure | |||
| 1 | Place steering knuckle with installed wheel hub or brake disc on parallel supports | *WH58.30-Z-1015-12A | |
| 2 | Measure and note height dimension (A) as a comparative measurement with a height marking device | ||
| *WH58.30-Z-1016-12A | |||
| 3 | Measure and note height dimension (B1, B2, B3) at the lowest point of the respective bore. | B1 = Supporting joint mounting B2 = Bearing of upper transverse control arm B3 = Bearing of steering knuckle arm/tie rod |
*BE40.30-P-1001-01A |
Test values for steering knuckle
| Number | Designation | Model 170 | Model 171 | Model 202 | ||
|---|---|---|---|---|---|---|
| BE40.30-P-1001-01A | Difference in height measurement | "A" - "B1" | mm | 5,1 ± 1 | 5.1 (± 1) | 5,1 ± 1 |
| "B2" - "A" | mm | 62,2 ± 1 | 62.2 (± 1) | 62,2 ± 1 | ||
| "B3" - "A" | mm | 22,5 ± 1 | 22.5 (± 1) | 22,5 ± 1 | ||
| See picture in | AR40.30-P-0451C | AR40.30-P-0451C | AR40.30-P-0451C | |||
Test values for steering knuckle
| Number | Designation | Model 203 | Model 208 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-01A | Difference in height measurement | "A" - "B1" | mm | 5.1 (± 1) | 5,1 ± 1 |
| "B2" - "A" | mm | 62.2 (± 1) | 62,2 ± 1 | ||
| "B3" - "A" | mm | 22.5 (± 1) | 22,5 ± 1 | ||
| See picture in | AR40.30-P-0451C | AR40.30-P-0451C | |||
Test values for steering knuckle
| Number | Designation | Model 209 | Model 210 except 210.08/28 | ||
|---|---|---|---|---|---|
| BE40.30-P-1001-01A | Difference in height measurement | "A" - "B1" | mm | 5.1 (± 1) | 5,2 ± 1 |
| "B2" - "A" | mm | 62.2 (± 1) | 62,5 ± 1 | ||
| "B3" - "A" | mm | 22.5 (± 1) | 13,8 ± 1 | ||
| See picture in | AR40.30-P-0451C | AR40.30-P-0451D | |||
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1015-12A | Parallel bases |
| WH58.30-Z-1016-12A | Height marking device |
