| 1 |
Remove front seats |
|
AR91.10-P-1000E |
| 2 |
Expose front or rear seat console |
|
|
| 3 |

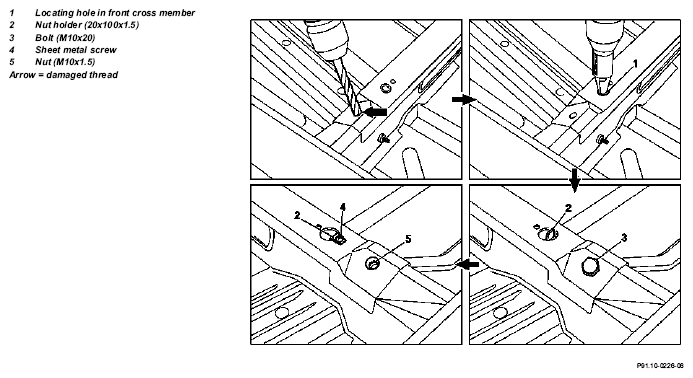

Drill out damaged thread (arrow) with 13 mm dia. bit |
The threaded tube in the console must be removed completely. |
|
| 4 |
Increase size of present locating hole (1) in front cross member to 22 mm dia. with boring bit or multiple stage countersink |
Remove drilling chips |
|
| 5 |

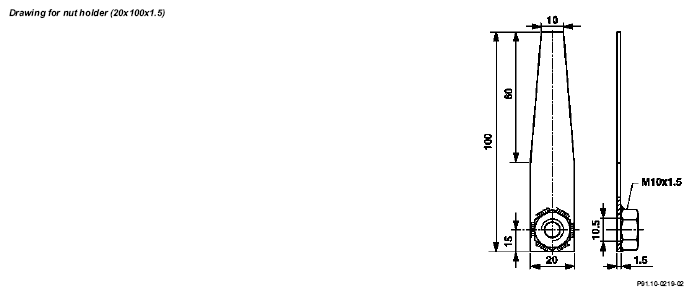

Fabricate nut holder (20x100x1.5) |
See drawing |
|
| 6 |
Insert nut holder (2) into front cross member through enlarged locating hole (1) |
On rear seat mount insert nut holder (2) through present elongated hole in console |
|
| 7 |
Fasten nut holder (2) with screw (3, M10x20) |
|
|
| 8 |
Bend over nut holder (2) and fasten with sheet metal screw (4) on cross member or console to prevent falling down |
|
|
| 9 |
Remove screw (3, M10x20) |
|
|
| 10 |
Position and align floor covering |
|
|
| 11 |
Install front seats |
With the original seat mounting screws. External torx attachment E12 |
|
| |
|
 |
*BA91.10-P-1001-01A |
