Removing and installing side airbag sensor - AR91.60-P-0710E
MODEL 202 as of 1.6.97
| Removing, installing | |||
| Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors | Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0002-01B | |
| 1 | Withdraw ignition key | ||
| 2 | Remove front seat | AR91.10-P-1000E | |
| 3 | Turn over floor covering in the area of the sensor to the rear | ||

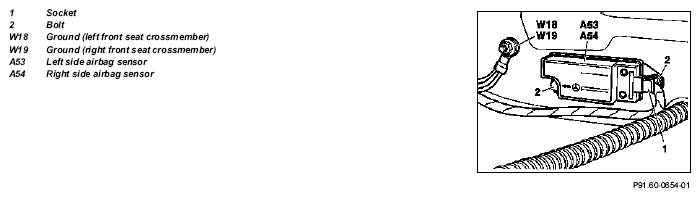

| 4 | Unclip socket (1) at side airbag sensor (A53 or A54) | ||
| 5 | Unscrew screws (2) | ||
| 6 | Install in the reverse order | ||
| 7 | Carry out diagnosis |
