Removing and installing side airbag in front door - AR91.60-P-0690E
MODEL 202 as of 1.6.97
| Removal, installation | |||
| Injury hazard when testing or repairing airbags or emergency tensioning retractors. | Store airbags with opening surface pointing up, do not expose to temperatures above 100°C. Interrupt electric circuit when working on these units. | AS91.00-Z-0001-01A | |
| Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors | Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0002-01B | |
| Evaluation of airbags and emergency tensioning retractors on accident vehicles | Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0006-01B | |
| Legal regulations on handling and storing airbags and emergency tensioning retractors | Models 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954 | AH91.00-P-0004-01A | |
| Important instructions on disposal of airbags and emergency tensioning retractors | All models | OS91.00-P-0001-01A | |
| 1 | Remove ignition key | ||
| 2 | Remove door liner on front doors | AR72.10-P-1000E | |
| 3 | Disconnect connector on left or right side airbag squib (R12/9 or R12/10) | ||

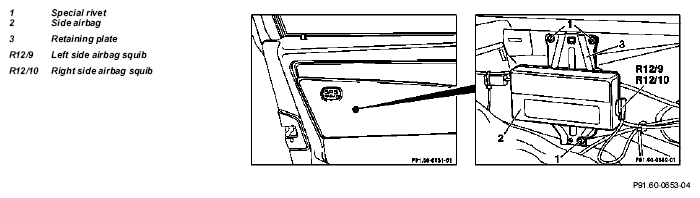

| 4 | Drill out rivets (1) in retaining plate (3) for side airbag (2) | ||
| 5 | Remove side airbag | Rendering airbags unusable |
AR91.60-P-0611A |
| 6 | Install in opposite order | ||
| 7 | Perform diagnosis |
