Removing and installing seat occupied recognition sensor - AR91.60-P-0720E

MODEL 202 With occupied seat recognition

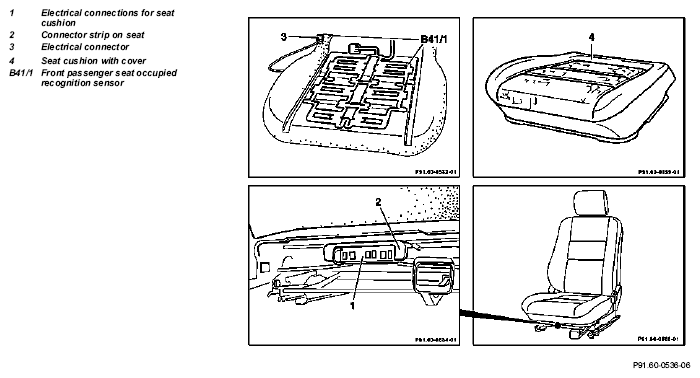

Fig 1: Identifying Seat Occupied Recognition Sensor Remove/Install Components - Model 202 With Occupied Seat Recognition

	Removal, installation
1	Remove passenger seat		AR91.10-P-1000E
2	Unclip electrical connections (1) for seat cushion on seat connector strip (2)	For this purpose it is necessary to unclip the plastic cover on the rear
3	Unfasten cable straps for affected cables
4	Remove seat cover		AR91.18-P-1800E
5	Pull electrical connector (3) for the front passenger seat occupied recognition sensor (B41/1) through the opening in the rubberized fiber matting
6	Remove the front passenger seat occupied recognition sensor (B41/1)	Installation:  Position the front passenger seat occupied recognition sensor (B41/1) uniformly on the rubberized fiber matting. The textile side should point upward. Do not bend seat occupied recognition sensor
7	Reinstall in opposition order
