Removing and installing rear head restraint mechanism - AR91.16-P-1780E
MODEL 202, 210 with CODE (430a) Left and right rear head restraints

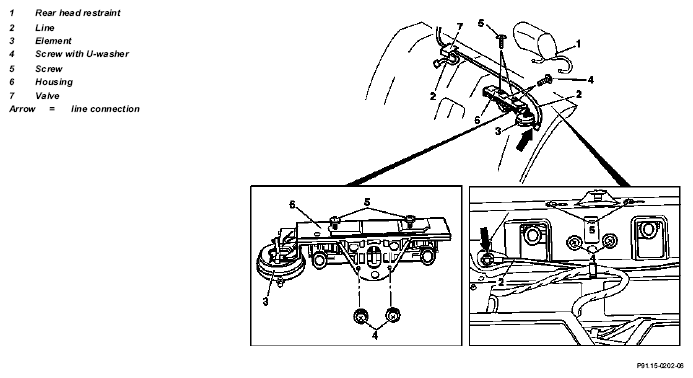

Fig 1: Identifying Rear Head Restraint Mechanism Remove/Install Components - Model 202, 210 With Code (430a) Left And Right Rear Head Restraints
| Removal, installation | |||
| 1 | Remove rear head restraints | AR91.16-P-1770E | |
| 2 | Remove panelling on C-pillar | AR68.30-P-4490F | |
| 3 | Remove rear shelf | AR68.30-P-4580F | |
| 4 | Pull line (2) off of element (3, arrow) | ||
| 5 | Unscrew screws (4, with U-washers) | *BA91.16-P-1001-01A | |
| 6 | Loosen screw (5) | *BA91.16-P-1001-01A | |
| 7 | Move housing (6) out at dividing wall | ||
| 8 | Remove housing (6) toward front | ||
| 9 | Reinstall in opposite order | ||
| 10 | Check retractable rear head restraints for proper function |
| Number | Designation | Model 202 | Model 210 | |
|---|---|---|---|---|
| BA91.16-P-1001-01A | Screws on rear head restraint mechanism | Nm | 10 | 10 |
