Removing and installing locking mechanism for folding rear backrest - AR91.12-P-1730E

MODEL 202 with CODE (287a) Through-loading feature

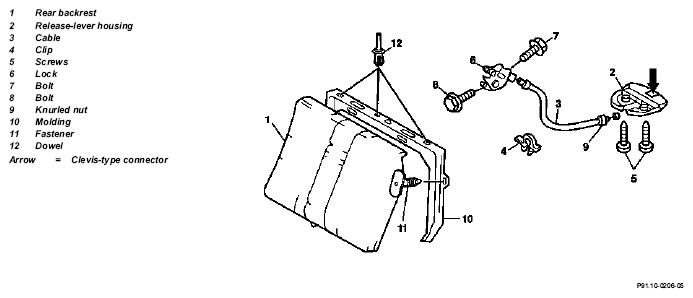

Fig 1: Identifying Locking Mechanism For Folding Rear Backrest Remove/Install Components - Model 202 With Code (287a)

	Removing, installing
1	Release backrest
2	Loosen parcel shelf at front (3 screws or 3 dowels)
3	Remove dowels (12) and fastener (11)
4	Undo screws (7 and 8)	To do so lift up parcel shelf and molding (10)
			*BA91.12-P-1001-01A
5	ΩRemove clip (4) for cable (3) at the partition
6	Undo screws (5)
7	Remove release-lever covering (2) together with cable (3) and lock (6) to the rear	When installing, insert clevis-type connector (arrow) from the rear wall
8	To install, carry out above in reverse order, then conduct function test	Adjust cable (3) at the knurled nut (9) so, that the lock (6) opens 2/3 in the direction of pull

REAR-SEAT BACKREST LOCK

Number	Designation		Model 202
BA91.12-P-1001-01A	Screw on rear-seat backrest lock	Nm	10
