Removing and installing front power seat motor group (seat cushion) - AR91.29-P-1420E
MODEL 202 with CODE (221a) left front power seat with CODE (222a) right front power seat

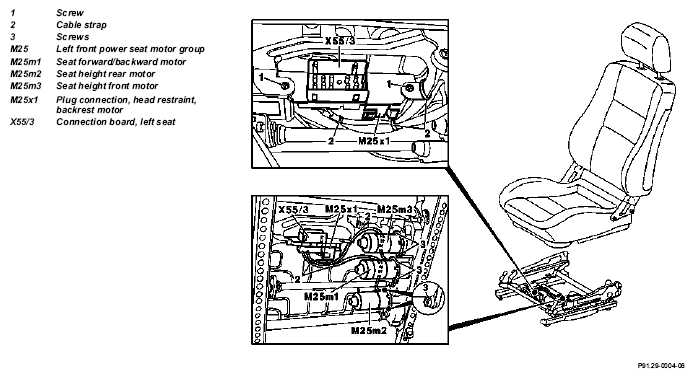

Fig 1: Identifying Front Power Seat Motor Group (Seat Cushion) Remove/Install Components - Model 202
| Removal, installation | |||
| 1 | Remove front seat | AR91.10-P-1000E | |
| 2 | Unscrew screw (1) | ||
| 3 | Disconnect plug connection, head restraint, backrest motor (M25/x1) | ||
| 4 | Disassemble connection board, left seat (X55/3) | AR91.29-P-1420-01E | |
| Reassemble connection board, left seat (X55/3) | AR91.29-P-1420-02E | ||
| 5 | Detach cable straps (2) as required | When reinstalling ensure that lines are routed correctly | |
| 6 | Unscrew screw (3) if required | *BA91.29-P-1001-01A | |
| 7 | Remove motors (M25m1, M25m2, M25m3) | ||
| 8 | Reinstall in opposite order |
| Number | Designation | Model 202 | |
|---|---|---|---|
| BA91.29-P-1001-01A | Screws for power seat motor | Nm | 4 |
