Removing and installing front power seat motor group (backrest) - AR91.29-P-1430E
MODEL 202
with CODE (221a) Left front power seat
with CODE (222a) Right front power seat
| Removal, installation | |||
| 1 | Remove front seat | AR91.10-P-1000E | |
| 2 | Disconnect plug connection, head restraint, backrest motor (M25x1) | ||
| 3 | Detach cable straps (on seat cushion) | ||
| 4 | Remove tensioning element on front seat backrest | ||

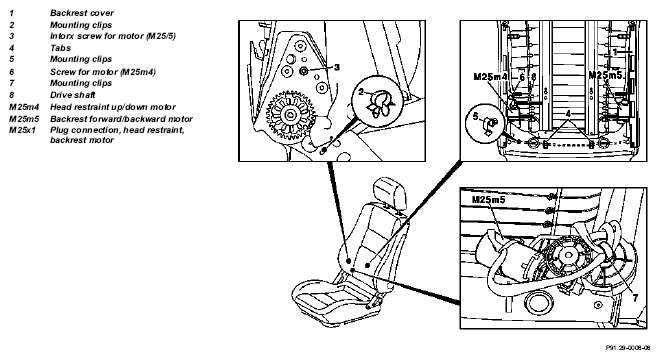

| 5 | Unhook backrest cover (1) on right | ||
| 6 | Unhook mounting clips (2) for cables | ||
| 7 | Unscrew in torx screw (3) for motor (M25m5) | *BA91.29-P-1002-01A | |
| 8 | Remove backrest forward/backward motor (M25m5) | ||
| 9 | Press out mounting clips (7) for cables | ||
| 10 | Unscrew screw (6) for motor (M25m4) | *BA91.29-P-1003-01A | |
| 11 | Remove drive shaft (8) | ||
| 12 | Press out mounting clips (7) for cables | ||
| 13 | Press tabs (4) out | ||
| 14 | Unhook cables from mounting clips (5) | ||
| 15 | Remove head restraint motor (M25m4) together with cable | ||
| 16 | Reinstall in opposite order |
| Number | Designation | Model 202 | |
|---|---|---|---|
| BA91.29-P-1002-01A | Screw for backrest motor | Nm | 5 |
| BA91.29-P-1003-01A | Screw for head restraint up/down motor | Nm | 5 |
