Removing and installing cover on rear seat cushion - AR91.18-P-1850E

MODEL 202

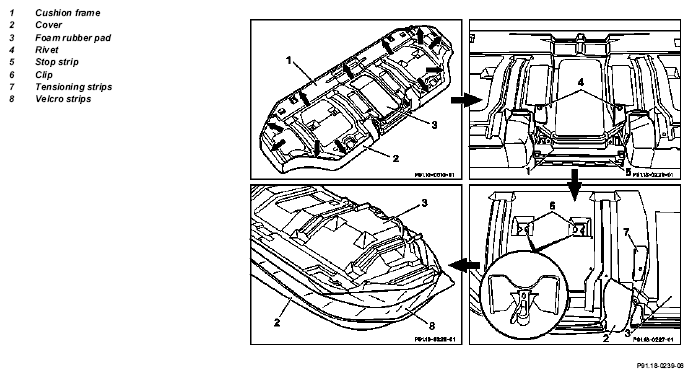

Fig 1: Identifying Rear Seat Cushion Cover Remove/Install Components - Model 202 (1 Of 2)

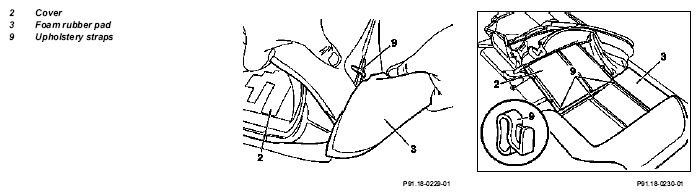

Fig 2: Identifying Rear Seat Cushion Cover Remove/Install Components - Model 202 (2 Of 2)

	Removal, installation
1	Remove rear seat		AR91.12-P-1700E
2	Set rear seat down on suitable surface with cover pointing downward
3	Press down cushion frame (1) and remove cover (2) from clip channel
4	Press out rivet (4) on tensioning strip
5	Unclip stop strip (5) on cushion frame (1)
6	Remove cushion frame (1) from foam rubber pad (3)
7	Unhook clip (6) for center lateral retention on wire strap Installation hook for upholstery straps		WF58.50-P-9118-01A
8	Pull cover (2) off of foam rubber pad (3) in area of belt buckle (Velcro strip)
9	Pull out tensioning strip (7) on foam rubber pad (3)
10	Fold cover (2) back at front over foam rubber pad (3)
11	Release Velcro strips (8) at front of foam rubber pad (3)
12	Fold cover (2) in at side
13	Unhook longitudinal and lateral retaining wires	For this purpose unclip upholstery strap (9) on retaining wire in foam rubber pad (3)
		For installation only	Figure
14	Remove cover (2) from foam rubber pad (3)
15	Pull retaining wires (10 each) out of fabric tubes in cover	Align retaining wires when installing
16	Reinstall in opposite order

Special tools

Fig 3: Identifying Installation Tool (202 589 08 63 00)
