Removing and installing cover on rear seat backrest - AR91.18-P-1870E

MODEL 202

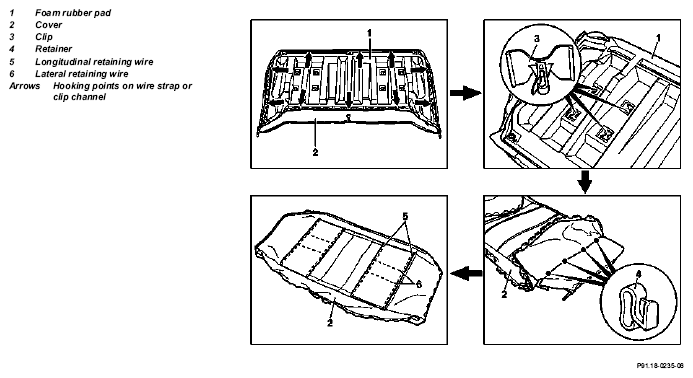

Fig 1: Identifying Rear Seat Backrest Cover Remove/Install Components - Model 202

	Removal, installation
1	Remove rear seat and rear seat backrest		AR91.12-P-1700E
2	Set rear seat backrest down on suitable surface with cover pointing downward
3	Unhook cover (2) all the way around on the wire strap and clip channel (arrows)
4	Unhook clip (3) for lateral retention of cover on rear of foam rubber pad (1) Installation hook for upholstery strap		WF58.50-P-9118-01A
5	Fold cover (2) inward after turning backrest over on rear
6	Unhook retainer (4) for longitudinal retention of cover from wire insert	For installation only	Figure
7	Remove cover (2) from foam rubber pad (1)
8	Pull out retaining wires (4 longitudinal and 4 lateral wires) from fabric tubes in cover (2)	Align retaining wires when installing
9	Reinstall in opposite order

Special tool

Fig 2: Identifying Installation Tool (202 589 08 63 00)
