Removing and installing cover on rear armrest - AR91.18-P-1880E

MODEL 202.07/08/18, 210.2

Model 202

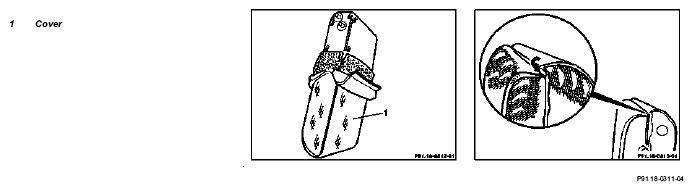

Fig 1: Identifying Cover On Rear Armrest Remove/Install Components - Model 202

Model 210

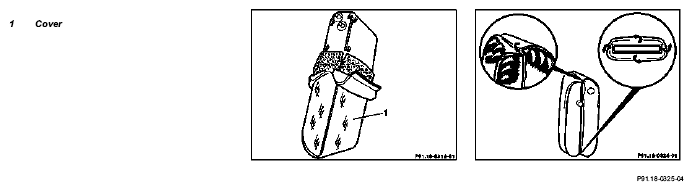

Fig 2: Identifying Cover On Rear Armrest Remove/Install Components - Model 210

	Removal, installation
1	Remove rear seat and left rear backrest	Model 202	AR91.12-P-1700EA
		Model 210	AR91.12-P-1700FA
2	Remove inner backrest fitting on left rear backrest	Model 202	AR91.12-P-1733A
		Model 210	AR91.12-P-1733B
3	Remove armrest on rear backrest		AR91.12-P-1745E
4	Release and pull off cover (1)
5	Reinstall in opposite order
