Removing and installing control valve for multi-contour seat - AR91.25-P-1710E

MODEL 202 as of 1.8.96, 208 with CODE (404a) Left multi-contour seat with CODE (405a) Right multi-contour seat

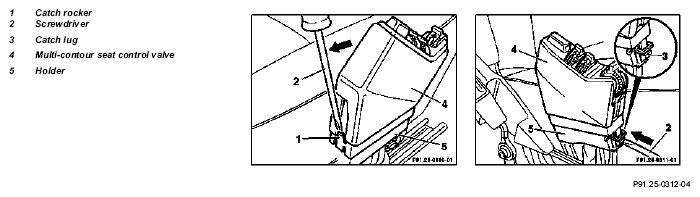

Fig 1: Identifying Control Valve For Multi-Contour Seat Remove/Install Components - Model 202

	Removal, installation
1	Unlock catch rocker (1) and catch lug (3) by pressing with screwdriver (2) in direction of arrow	Installation:  The catch rocker (1) and catch lug (3) must arrest properly.
2	Pull multi-contour seat control valve (4) up off of holder (5)
3	Check pneumatic function of multi-contour seat control valve (4)		AD80.20-P-8004B
4	Reinstall in opposite order	When pressing on multi-contour seat control valve (4) pay attention to insert profiles on pneumatic lines (danger of breaking)
