Removing and installing armrest for divided rear backrest - AR91.12-P-1750E
MODEL 202

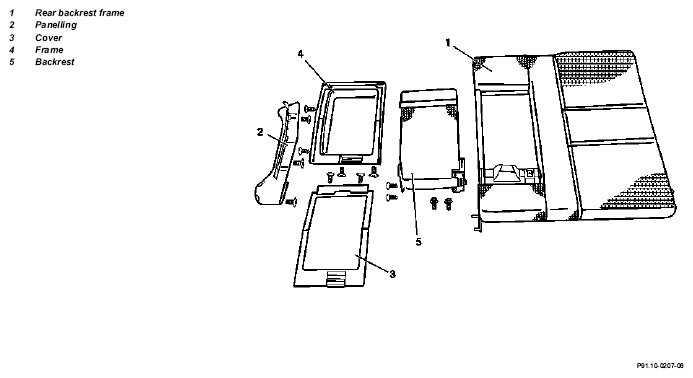

| Removal, installation | |||
| 1 | Remove folding rear backrest | AR91.12-P-1720E | |
| 2 | Unscrew screws on panelling (2) | ||
| 3 | Remove panelling (2) on rear backrest frame (1) | ||
| 4 | Unscrew screws on cover (3) | ||
| 5 | Unclip cover hinge at top and remove cover (3), clip into rear backrest frame (1) | ||
| 6 | Unscrew screws on frame (4) | ||
| 7 | Remove frame (4) from rear backrest frame (1) | ||
| 8 | Unscrew screws on side of mounting plate | ||
| 9 | Unscrew screws on inside of mounting plate | ||
| 10 | Remove armrest (5) on rear backrest frame (1) | ||
| 11 | Reinstall in opposite order |
